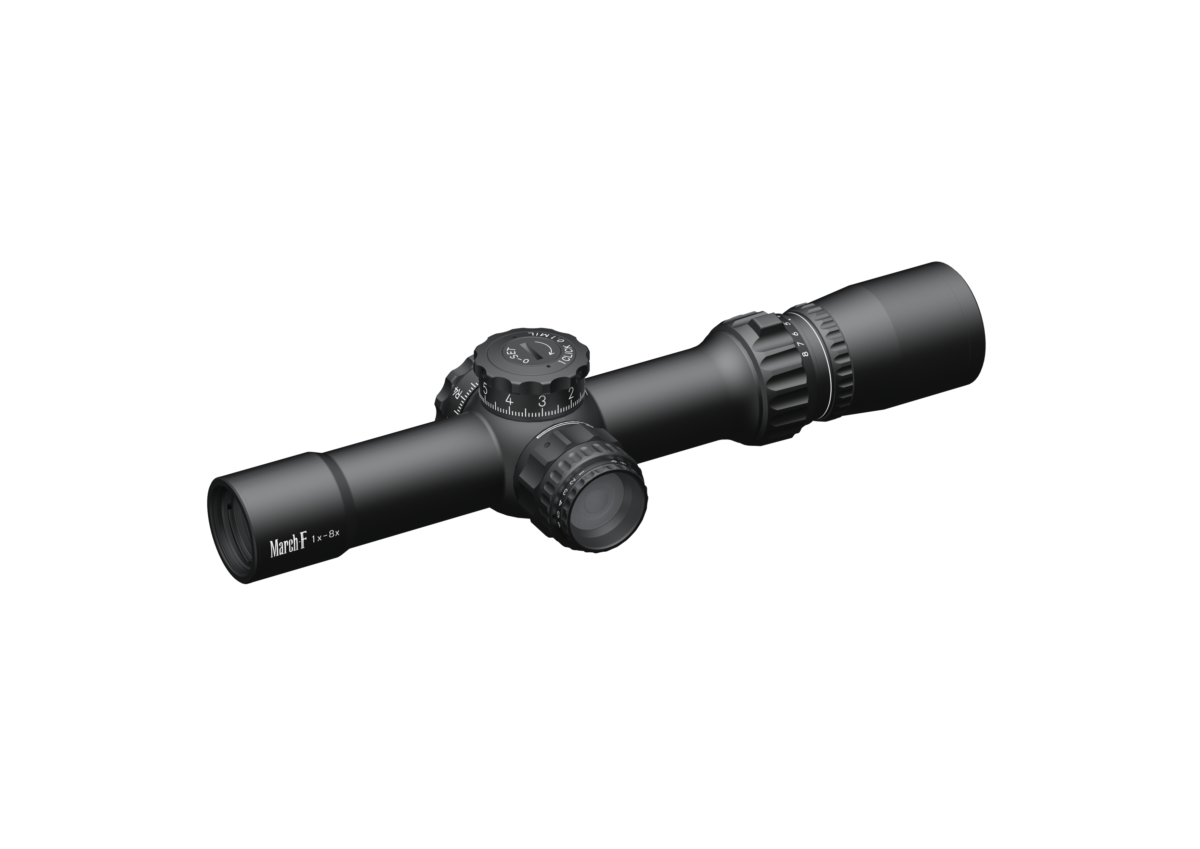

D8V24FIML (MIL, Tactical, Illumi)
March-F 1x-8x24mm is a compact scope with 8 magnification ratio. The length is 256mm (10.08inch) and the weight is 560g (19.75oz). Easy to use for short and middle range shooters with an illuminated reticle, oversized dials for elevation, windage, and side focus for easy adjustment. The elevation dial has a 0-set function.
・8X Zoom in FFP, MIL
・30mm diameter body
・24mm objective lens
・Focus from 10 yard to infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
・6 level illumination module
・Top quality multi lens coating where the transmittance is very near 100%
・Water repellent lens coating
First Focal Plane Reticle Scope (FFP)
A feature of First Focal Plane design, also known as FFP, is the reticle scale value does not change over the entire zoom range. Also the point of aim (POA) does not change over the entire zoom range. Using the reticle for ranging and also with trajectory drop charts is much simplified. However, the reticle scale will get thicker when magnification is increased. The special reticle design in the March scope allows target acquisition quickly at both low and high magnification.
0.1 MIL Type
1 click adjustment : 0.1MIL (1cm @100m)10 MIL turret revolution (100cm @100m)0-set on Elevation turret
